Wave-type Stainless Steel Water Tank

POSCO

Tel: +82 32 200 2514
Website: https://www.posco.com/

Wave-type Stainless Steel Water Tank

POSCO – South Korea

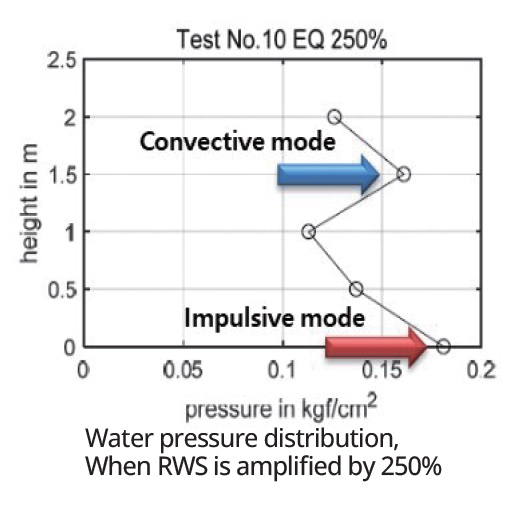

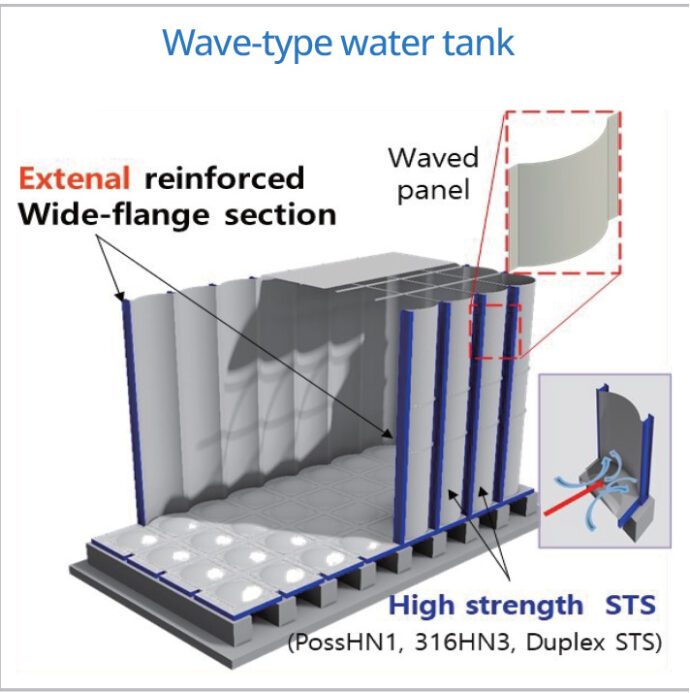

The wave panel has the excellent water pressure distribution and reduces sloshing in the event of an earthquake.

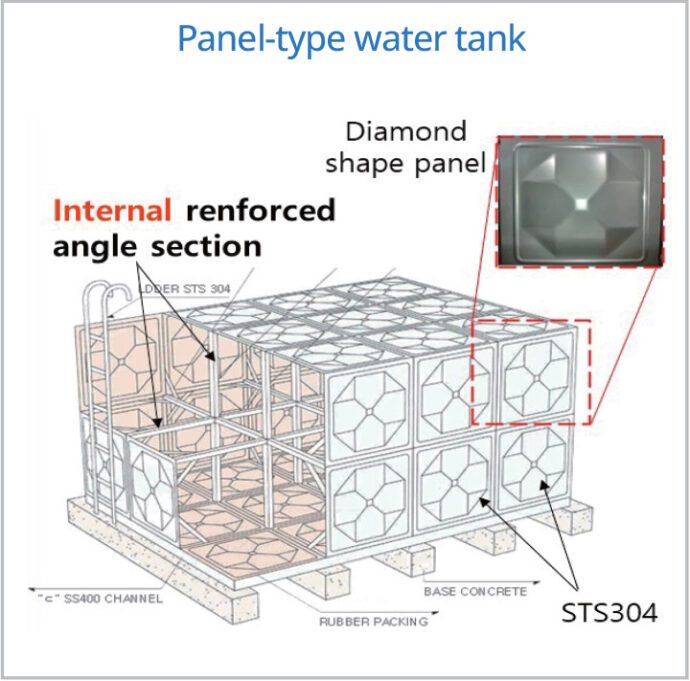

Since there is no reinforced frames inside the water tank, cleaning is easy and maintenance is convenient.

Characteristics

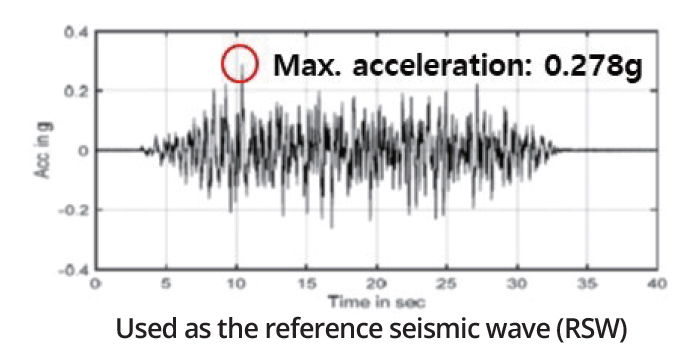

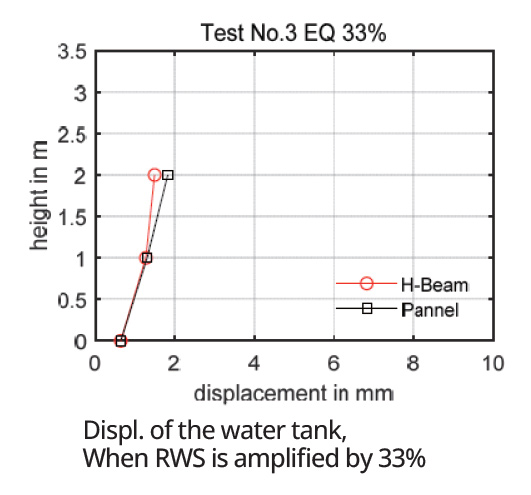

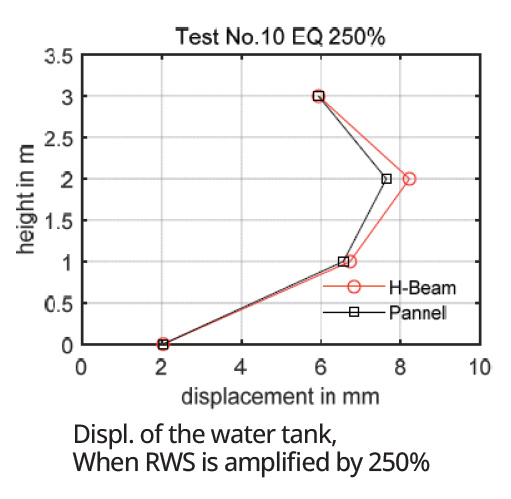

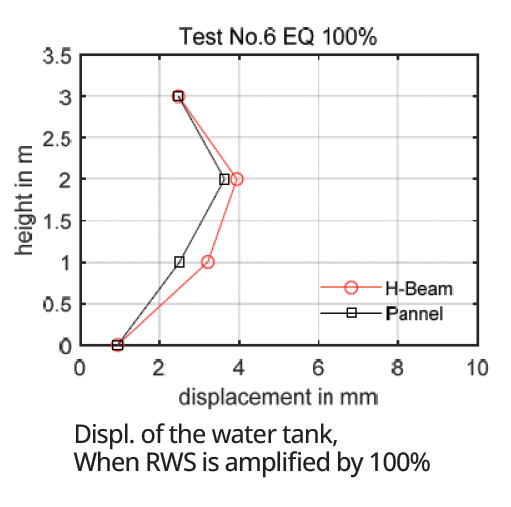

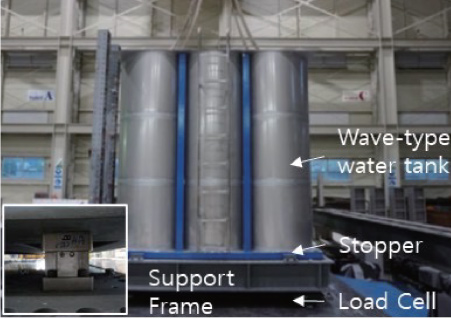

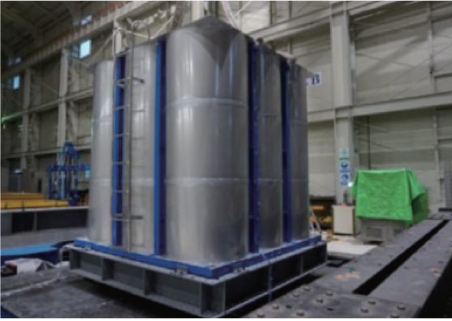

Shaking table test conducted with 2.5× seismic load (RSW 0.278g) using a 30-ton tank (3.16×3.16×3.0 m, 2.0 m max water level)

Applications

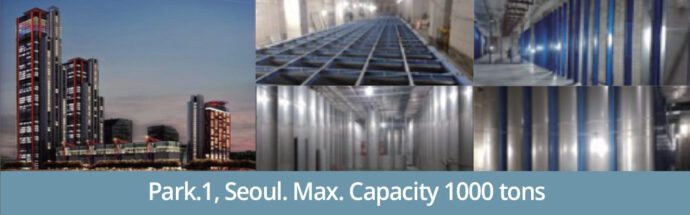

Park.1, Seoul. Max. Capacity 1000 tons

Jocheon District Reserivoir, Jeju Island. Max. Capacity 500 tons
