Mesh for Gabion Walls for Slope Protection

Quick Soil Stabilization using Sm@rtFAB Gabion walls

Quick Soil Stabilization using Sm@rtFAB Gabion walls

Quick Soil Stabilization using Sm@rtFAB Gabion walls

Tel: 1800 208 8200

TATA Steel – India

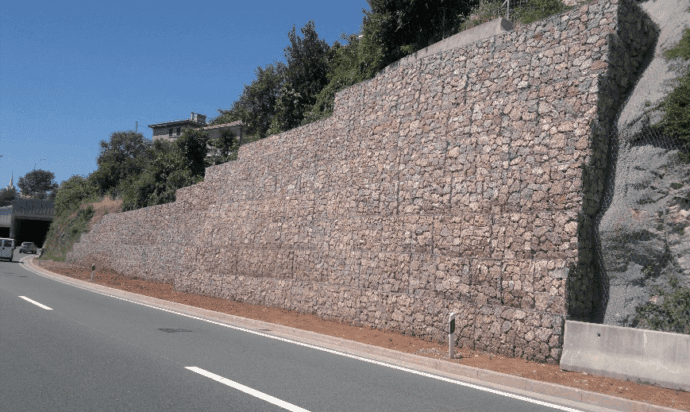

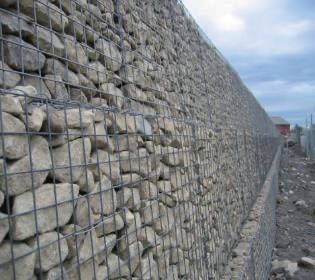

Sm@rtFAB Gabion walls are executed mainly for the purpose of soil stabilization behind the wall, but it can also be executed as a cover wall. The wall made from Gabion baskets that are stacked in one or more rows, depending on the height of the wall.

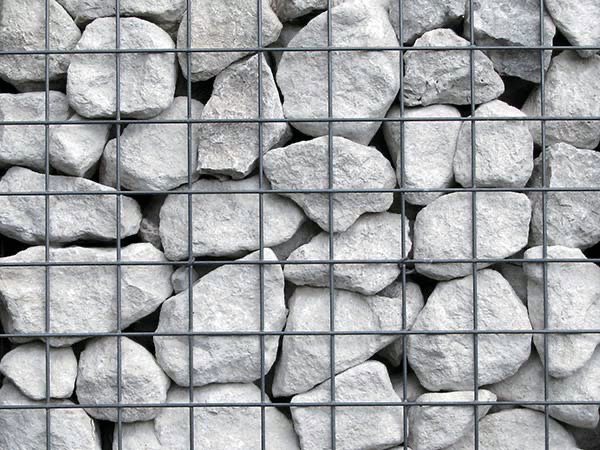

Bi-axial Sm@rtFAB Gabion walls are manufactured from a square mesh, normally of opening size 75.0mm × 75.0mm where the longitudinal wires are welded to the cross wires at their intersection points.
Sm@rtFAB Gabion walls can be readily modified on site by cutting the mesh back to the next transverse mesh wire.
Sm@rtFAB Gabion walls are available in a number of wire diameters to suit the application

Quick Restoration
– Enables fast stabilization of slopes and backfilled areas.
Efficient and Cost-Effective Construction
– Workshop-based fabrication reduces material waste, lowers costs, and simplifies site management by minimizing on-site labor.
Optional Galvanized Sm@rtFAB Gabion Walls
– Available for enhanced durability and corrosion resistance.
Sustainable Alternative to TMT Mesh
– Offers improved environmental and material performance over conventional methods.

Properties	Sm@rtFAB Gabion walls
Min. UTS [Ultimate tensile strength] (MPa)	595
Min. YS [Yield strength] (MPa)	550
Min. %age elongation	10%
Weld shear strength	~0.30 times of YS
