Steel Pile Retaining Wall using Tubular Hollow Sections

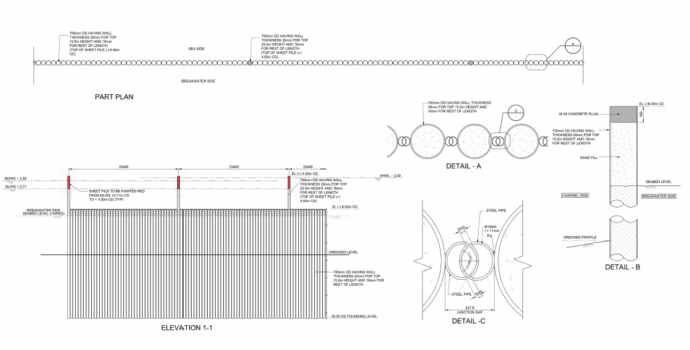

Paradip Port (Odisha, India) – Sea Shore protection work construction drawing

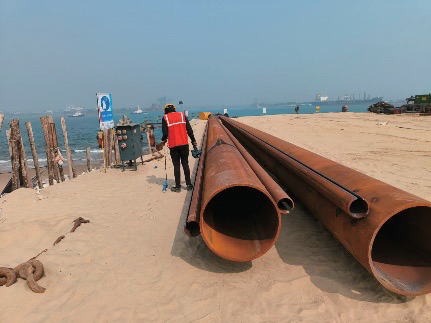

Beginning of installation work of pipe piling at Paradip Port

TATA Steel

Tel: 1800 208 8200

Steel Pile Retaining Wall using Tubular Hollow Sections

TATA Steel – India

Retaining walls prove to be critical structures when it comes to protection of infrastructure around marine bodies and sea-shores.
Tata Structura Steel Hollow Sections prove to be the best suited structural steel candidate for giving shape and strength to sturdier construction while maintaining the structural integrity of the retaining wall

Characteristics

Durable Protection for Coastal Infrastructure
– Steel Pipe Piles form interlocked retaining walls that resist both vertical and horizontal loads,
ensuring watertight contact with rock layers without additional injection pipes.
Fast and Efficient Construction
– Steel Hollow Sections offer excellent bendability and weldability, enabling faster construction compared
to reinforced concrete alternatives.
High Structural Resilience
– High-inertia Steel Pipe Piles withstand heavy and multi-directional sea-shore loads, improving impact
resistance and overall durability.
Certified Sustainable Solution
– Tata Structura Steel Hollow Sections are EPD and GreenPro certified, supporting environmentally responsible construction practices.
Strong and Reliable Connections
– Welded connectors between piles ensure structural continuity and enhanced strength throughout
the retaining system.

Applications

Marine Grade Large Diameter Steel Hollow Sections have been used for shore protection at Paradip
Grade of Steel Used : Tata Structura S355 J2H
Dimensions of Steel Hollow Section : 165 NB
Quantity : Over a 1000 MT
