Nest-in [EzyNest]

TATA Steel

Tel: 1800 208 8200

Nest-in [EzyNest]

TATA Steel – India

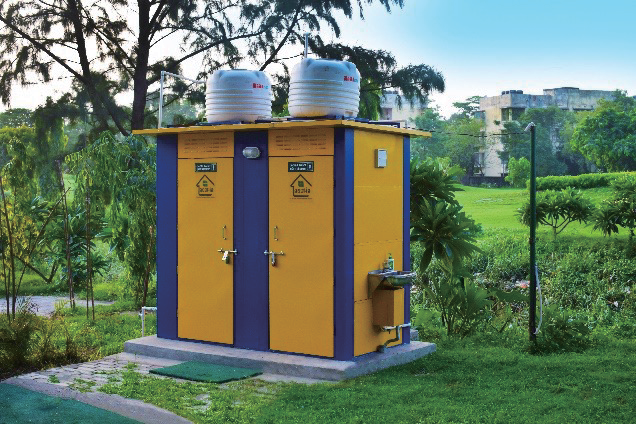

  • EzyNest is a steel-based modular toilet that can be used in a variety of settings, including construction sites, events, and disaster relief areas. This is modern, durable & one stop sanitation solution which is available with waste management, electrical and plumbing fittings.
  • The toilets are extremely easy and quick to construct and can be installed in variety of environments and remotest of locations.

Characteristics

  • Standardized and Modular Design
    – Available in two types (C & D) with optional overhead water tank,
    allowing flexible block configurations.
  • Durable and Functional Construction
    – Corrosion-resistant insulated walls, embedded fittings, and
    natural ventilation ensure comfort and longevity.
  • Inclusive and Sustainable Features
    – Includes a waste management system (biodigester) and a PWD-friendly variant for universal accessibility.

Advantages Of EzyNest

Speed EzyNest structures are pre-fabricated
and installed on the job site making it
easy and fast to construct and ideal to
provide quick sanitation solution.
Portable The toilet is portable and easy to transport, so it can be set up in a variety of locations.
Modular Flexibility EzyNest is equipped with ventilation system, plumbing and electrical fittings making it a one stop solution for all the toilet needs.
Hygiene EzyNest is equipped with a waste management system so it helps to prevent odor and the spread of germs.



Applications

Technical Parameters

Member Details Specifications
Foundation Brick foundation with PCC
Structure Combination of C, L and Z sections made of 1.2mm thick plain galvanised sheet, powder coated
Wall and Roof panels Sandwich panels of 40mm thick made of galvanised
plain sheets (Galvano) 0.6mm thick, with EPS insulation
Insulation High Density EPS (Expanded Polystyrene)
Doors 40mm sandwich panel steel doors made of 0.6mm thick Tata Steel’s Galvano, with insulation inside
Ventilation Powder coated GP louver panels for cross ventilation

Categories

Restoration Solution, Housing & building
