Standard Rural Bridges

Tel: +1 800-237-0230

Gerdau (Long Steel North America) – United States

Developed by Gerdau, the five-span standardized rural bridges comply with ABNT NBR 16694 : 2020 and
are tailored for low-traffic rural roads, prioritizing safety, durability, and low maintenance.
The composite system integrates rolled steel beams with precast reinforced concrete slabs, eliminating the need for formwork and ensuring efficient, high-quality construction.
Designed for higher TB-450 live loads and supported by ready-to-use plans and fast assembly, the system enables quick deployment in disaster zones.

Spans :

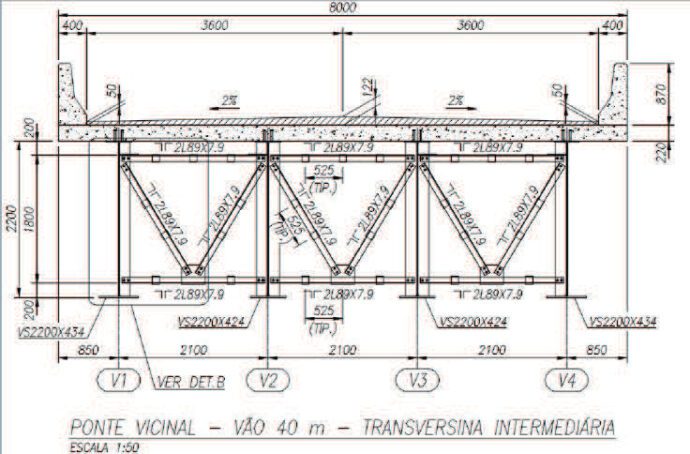

40 m span ➞ width 8 m ➞ beams spaced 2.1 m apart ➞ 2 cantilevers 0.85 m
35 m span ➞ width 8 m ➞ 4 beams spaced 2.1 m apart ➞ 2 cantilevers 0.85 m
30 m span ➞ width 8 m ➞ 4 beams spaced 2.1 m apart ➞ 2 cantilevers 0.85 m
20 m span ➞ width 8 m ➞ 4 beams spaced 2.1 m apart ➞ 2 cantilevers 0.85 m
15 m span ➞ width 4.2 m ➞ 2 beams spaced 2.6 m apart ➞ 2 cantilevers 0.80 m
Steel Consumption
-ranges from 106 to 258 kgf/m², depending on the span.
Standard guardrail
-New Jersey type.

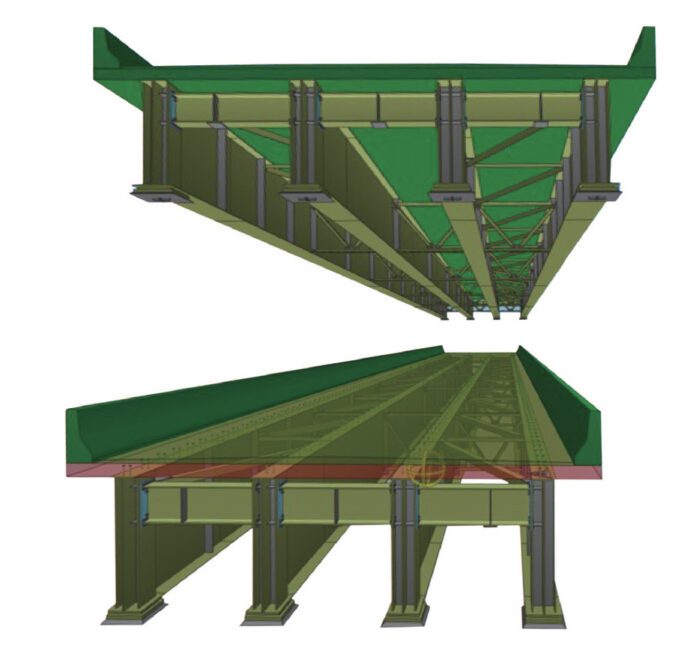

Composite structure
–Gerdau rolled steel beams + reinforced concrete slab
with precast panel.
Steel profiles
–COR500 and WS350, resistant to atmospheric corrosion.

Rural infrastructure :
crossings on local roads and agricultural access routes.

Municipal and state highways :
where heavy vehicle traffic occurs without load control.

Regions requiring fast and standardized solutions for small and medium-sized bridges.

Public and private projects that demand safety, durability, and low maintenance costs.
