TAS Pile

POSCO – South Korea

• In the event of an earthquake, most of the damage is caused by the lack of bearing capacity of the foundation or by the horizontal force acting on the upper part of the pile.
• The triaxial seismic pile(TAS Pile) is designed to secure stability when bearing capacity and horizontal force are insufficient in the foundation.

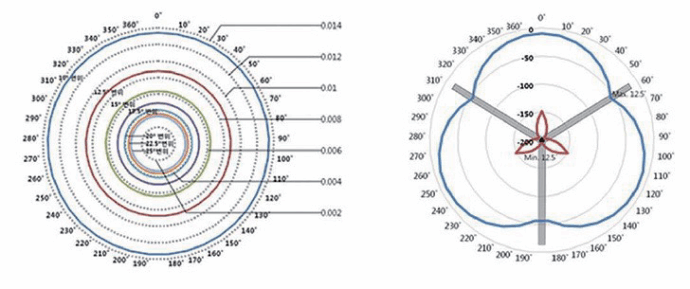

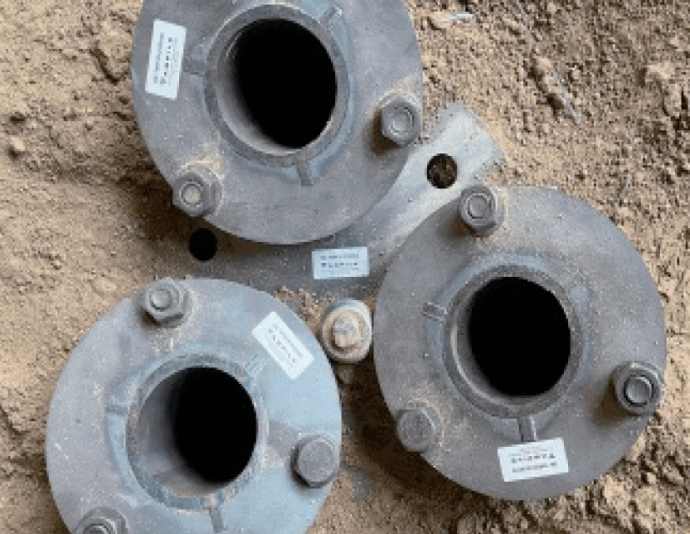

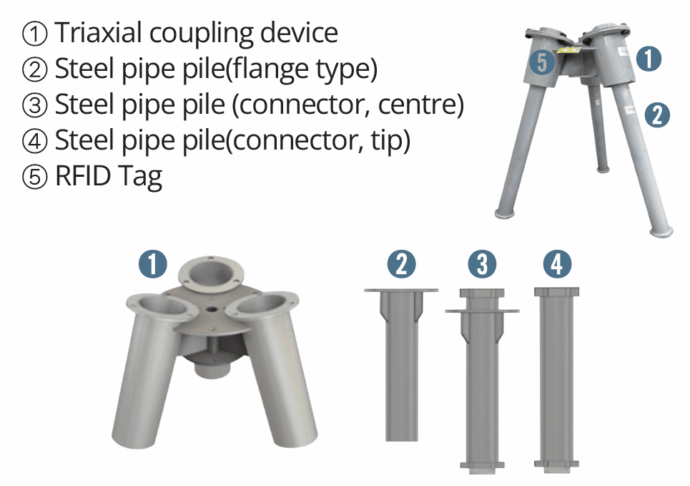

• The triaxial seismic pile is a structure that resists horizontal loads equally in all directions, and has excellent horizontal and vertical resistance.① Triaxial coupling device
  ② Steel pipe pile(flange type)
  ③ Steel pipe pile (connector, centre)
  ④ Steel pipe pile(connector, tip)
  ⑤ RFID Tag

---

Characteristics

• ECompact Seismic Pile Solution for Urban Housing

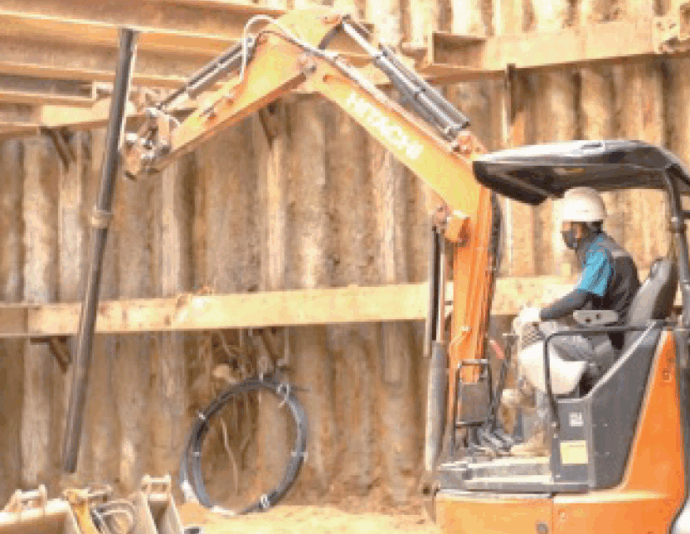

  – Enables seismic reinforcement in small urban sites using compact equipment, optimized for narrow spaces where large-diameter piles are not applicable.
• The triaxial seismic pile is a structural system that resists
  horizontal loads equally in all directions, and has excellent
  horizontal and vertical resistance due to the effect of installing
  truss columns at the bottom of the building.
  – Vertical : applicable 30~100 tonf
  – Horizontal : displacement occurs within 100mm under 5~20tonf

Specification (mm)	Vertical load resistance(KN)	Horizontal load resistance(KN)	Inclination Angle(˚)
	300	30  45  60
D: 89.1	450	45  67.5  90	15˚ 20˚ 25˚
t: 6.0	600	60  60  120
	750	75  75  150
D: 114	1000	100  100  200	15˚ 20˚ 25˚
t: 9.0	1250	125  125  250

---

Applications

NO	PROJECT	YEAR
1	Ganhyeon-ri, Jijeong-myeon, Wonju-si	2020
2	Anyang-dong 528-3	2021
3	733 Gyeongsu-daero, Dongan-gu, Anyang	2021
4	15 Beobwon-ro, Osan-si	2021
5	Anyang-si Surisan-ro	2021
6	Gasan Digital 2-ro, Geumcheon-gu	2021



---
