Auditorium + wellness center in Naples

Auditorium + wellness center in Naples

Building use

Other

Country/Region

Italy

Overview

The building host facilities open to the public as part of a regeneration project on a previous industrial site, where a steel company had its production facilities for decades. The building therefore was conceived with a structural steel frame, to acknowledge the “history” of the site. The main feature of the requalification job consists in an auditorium for 300 seats, and a sport/fitness center for about 7600 square meters.

Basic information (construction date, number of stories, gross floor area, adopted design code, engineer(s), Contractor(s), etc.)

Construction date: 2011
Number of stories: 3
Gross floor area: auditorium for 300 seats + 7600m2 of wellness center and 2000m2 of other amenities. 600 parking lots
Adopted design code: Eurocode2 and 8 and D.Min.LL.PP 9 and 16/1/1996
Engineer(s): Servizi integrati srl and IDI srl
Contractor(s): Sled

Issue and/or innovation

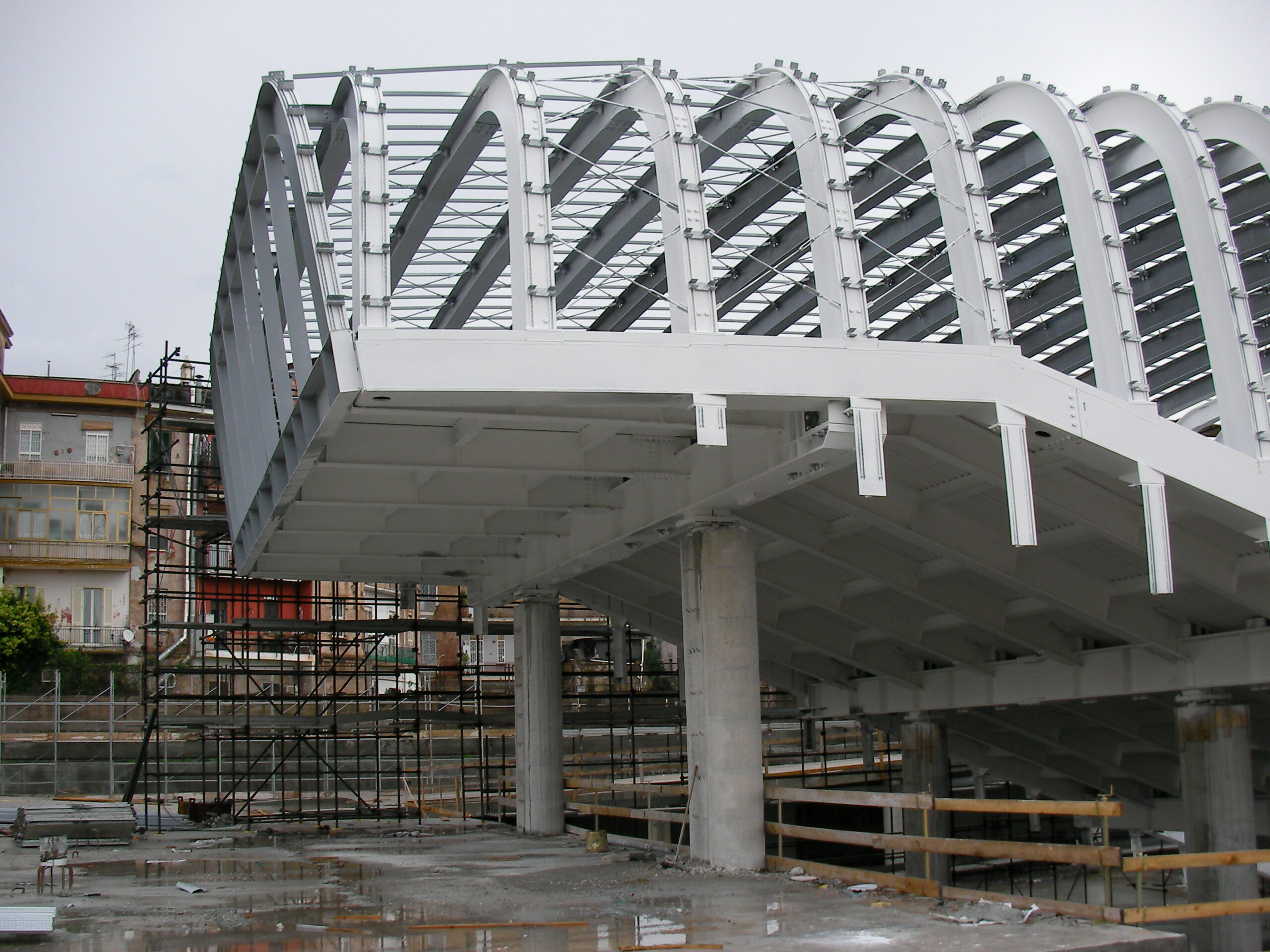

The architectural design of the auditorium called for a lightweight and luminous space, with the abundant penetration of natural light. This requested a steel skeleton to be designed.

Reason for composite solution

To give enough stiffness and proper acoustic performance to the floor, a heavy design solution was needed and this was achieved through the use of an heavy concrete slab.

Specific solution/technical details

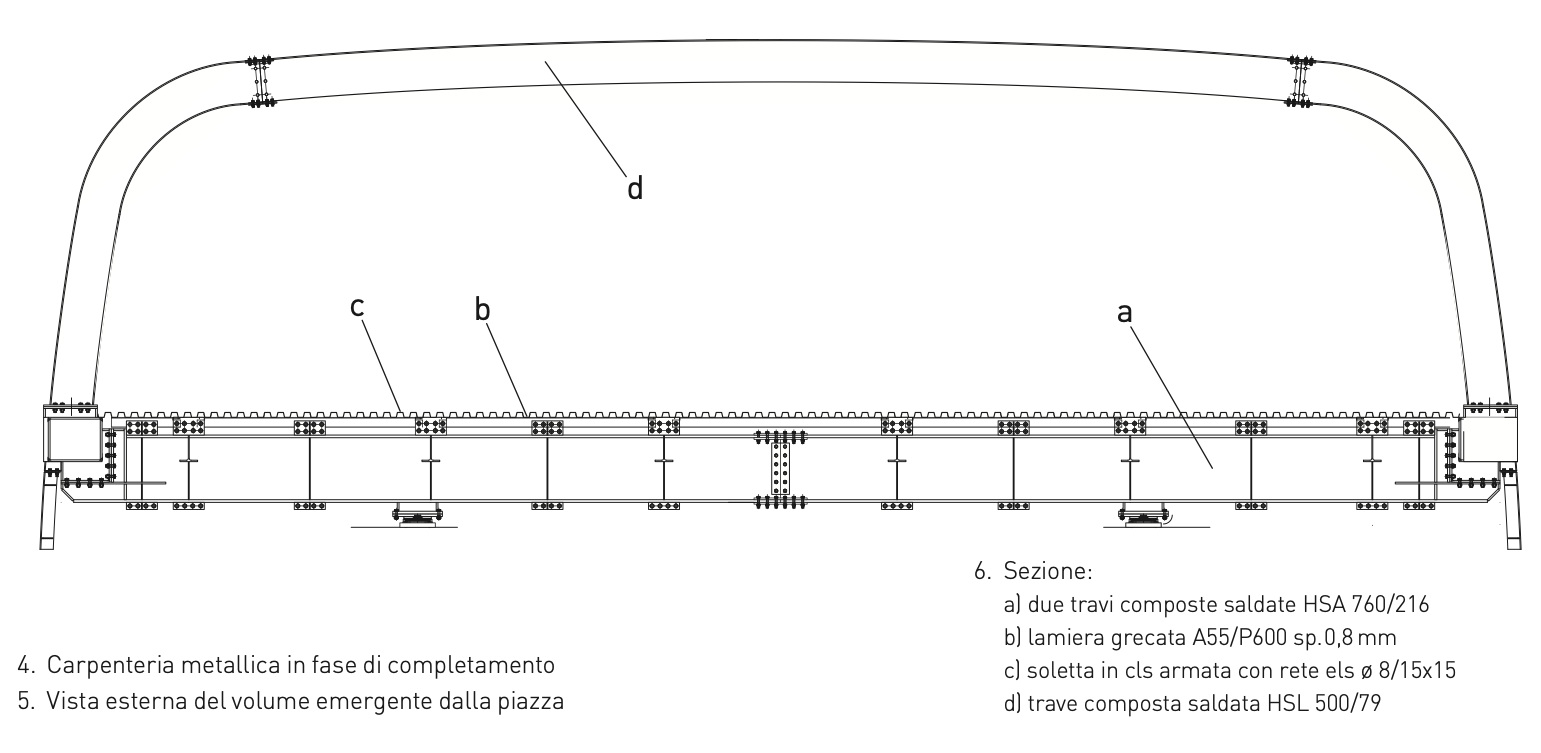

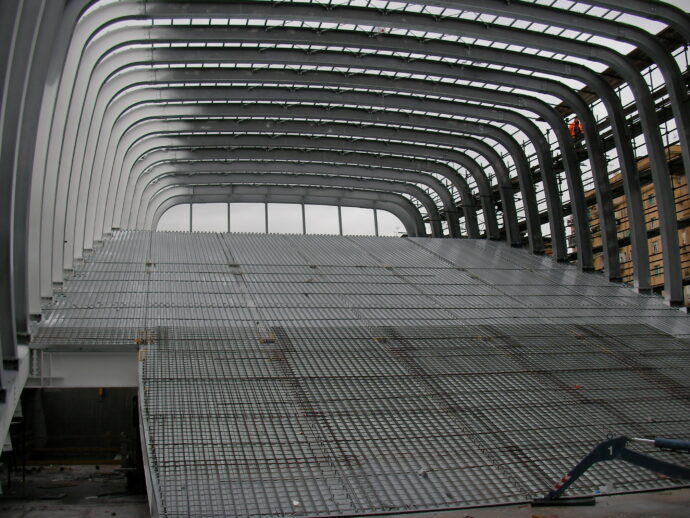

The inclined composite floor of the auditorium is supported by a frame spanning 7.9meters. Each frame is composed of two coupled HAS 760/216 beams, welded together, supported by concrete columns. The secondary beams are formed by either HSA600/180 beams (aligned with the concrete columns) and IPE 500 beams with a distance of 2,66 meters one another and finally tertiary beams made with IPE 240. The corrugated sheet (A55/P 600 with 0.8mm of thickness) and the concrete above works compositely with the beams by means of shear studs and a 8mm 15x15cm welded wire mesh.

Impact or effectiveness

The construction of the composite floor proved to be an effective solution thanks to the rigidity of the slab that offers a support to both the auditorium seats and its enclosure.
