Steel Pipe Sheet Piles & Steel Pipe Piles

Japan Iron and Steel Federation – Japan

Foundation resistance can be strengthened with steel pipe sheet piles foundation or additional steel pipe piles driving, in order to address bridge scouring control, structure aging renovation, seismic reinforcement and inadequate strength of the foundation caused by expansion of superstructure, etc.

Characteristics

Easy and Secure Reinforcement
– Reinforcement is simplified by applying steel pipe sheet pile foundations or additional piles to caisson and
other existing foundation types.
Space-Efficient Construction in Confined Areas
– Enables construction in limited overhead spaces, reducing site footprint through compact steel pipe pile reinforcement.
Cost and Time Savings with Temporary Coffering
– Using steel pipe sheet piles as both foundation and temporary coffering reduces overall construction cost and duration.

Applications

In Japan : many track records

For example,

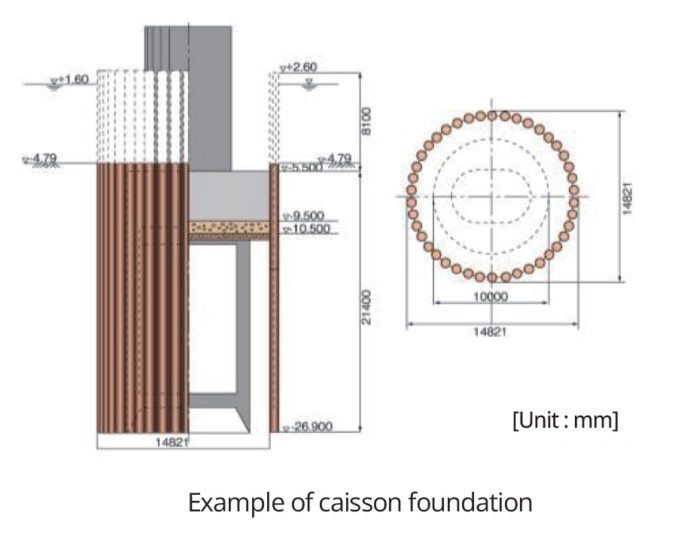

Caisson foundation :
Meishin highway, Ouji bridge,
Akasho/Higashihutami bridge etc

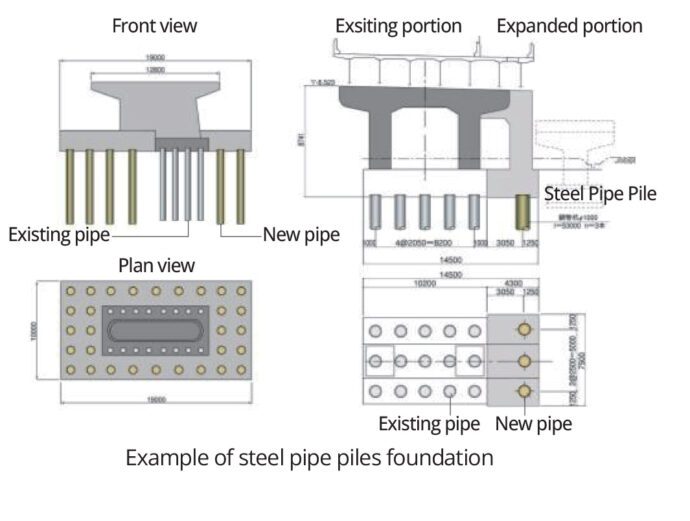

Steel pipe piles foundation :
Koza bridge, Kamome bridge etc
