Steel Sheet Piles

Japan Iron and Steel Federation

Tel: +81 3 3669 4815
Website: https://www.jisf.or.jp/en/

Japan Iron and Steel Federation – Japan

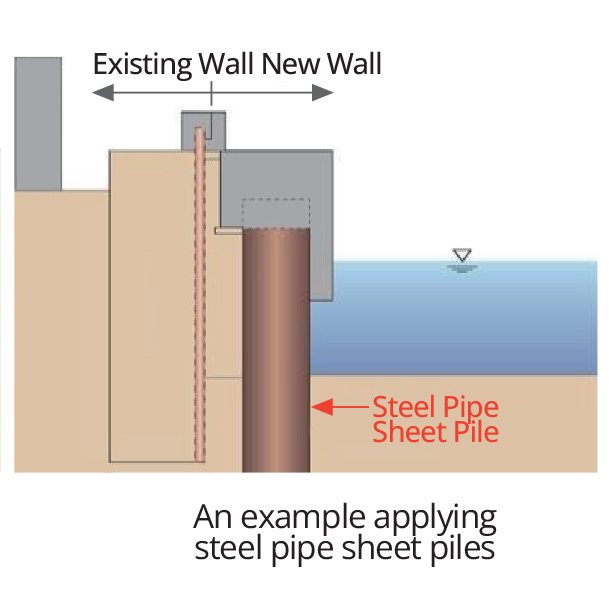

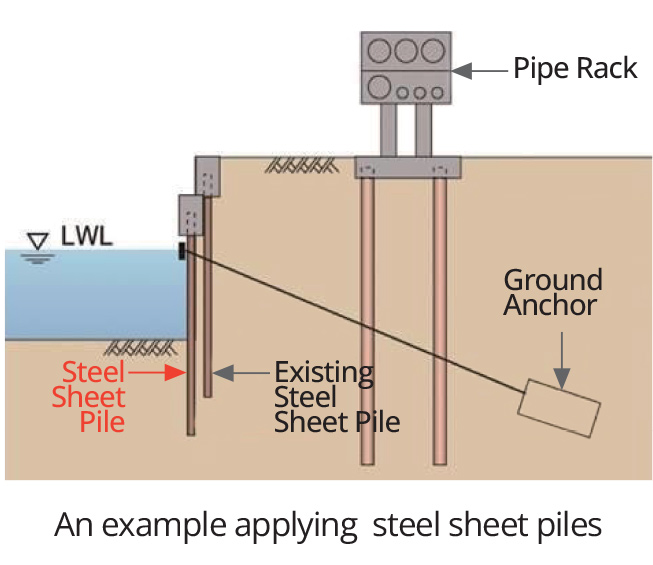

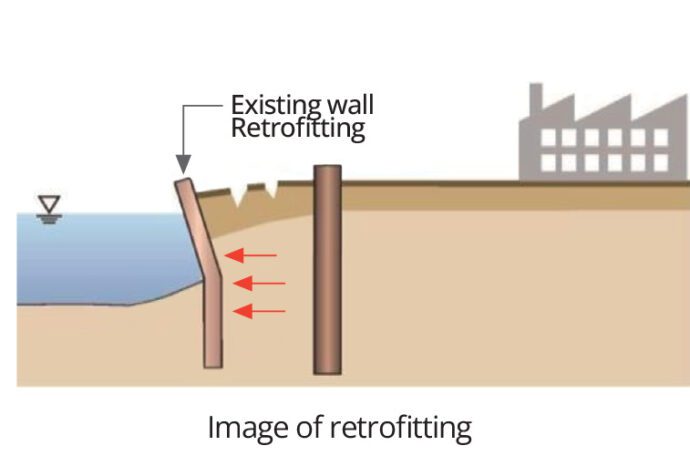

Method of controlling lateral flow of the ground by means of seismic retrofit applying steel material
either at hinterland or in front of revetment.

Characteristics

Rapid Construction Using Hinterland Space
-Enables fast and efficient construction by utilizing available hinterland areas.
Preservation of Existing Structures
– Eliminates the need for major structural modifications or significant berth line alterations.
High Compatibility with Other Measures

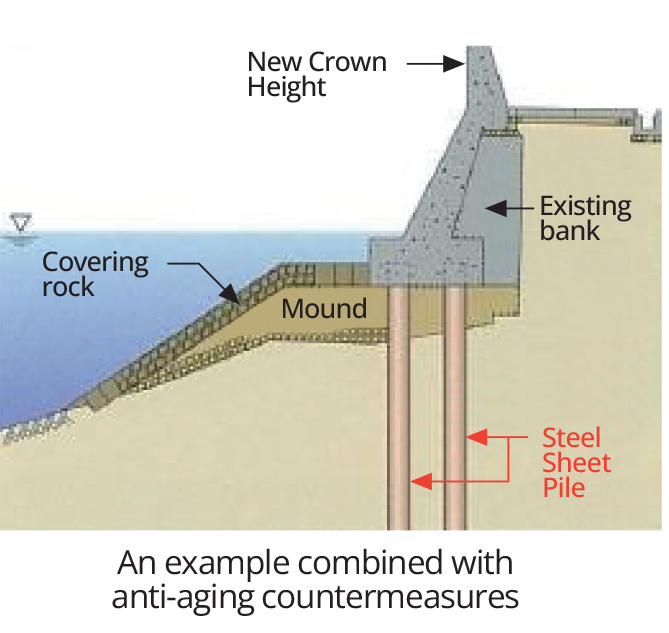

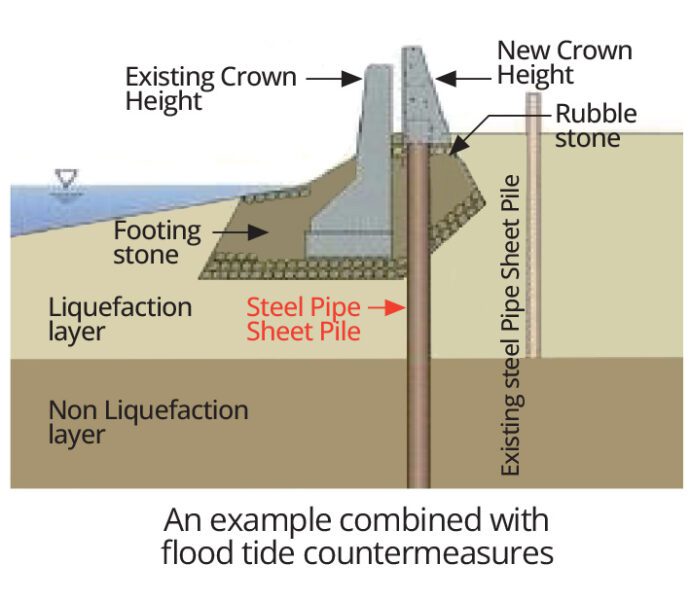

-Can be effectively integrated with flood protection and anti-aging reinforcement strategies.

Applications

Standard condition of applications

Water depth : Approx.10m
Location : Coast, River
Type of existing foundation : Gravity, Piled
