Double Steel Sheet Pile Walls

Leakage

Leakage

Overflow

Overflow

Japan Iron and Steel Federation

Tel: +81 3 3669 4815
Website: https://www.jisf.or.jp/en/

Japan Iron and Steel Federation – Japan

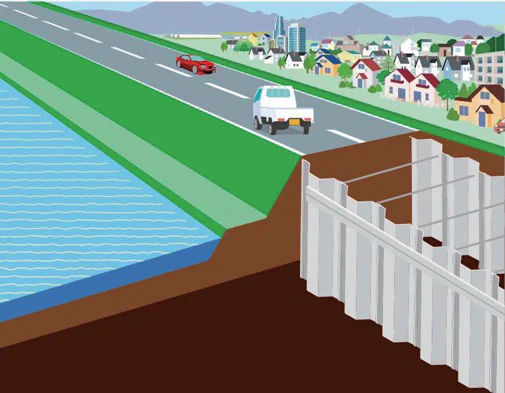

Method for reinforcing river embankment by restraining Double (double row) Steel Sheet Pile Walls as embankment body by tie rod.
By placing Steel Sheet Piles on the butt of the river embankment or inside the embankment, the cause of embankment collapse during Flood and Earthquake is shut out, and the collapse of the embankment is suppressed.
It is a tenacious embankment reinforcement method which makes the time until the embankment collapse even a little longer in case of overflow of water.

Characteristics

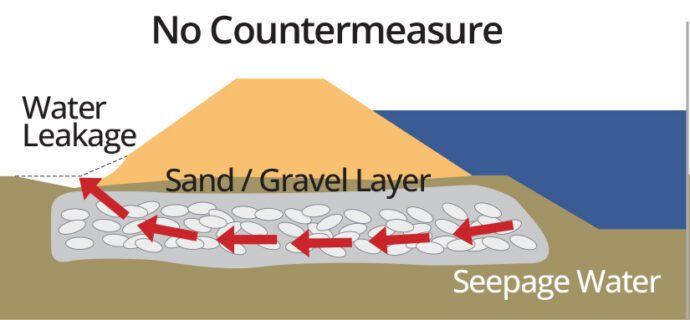

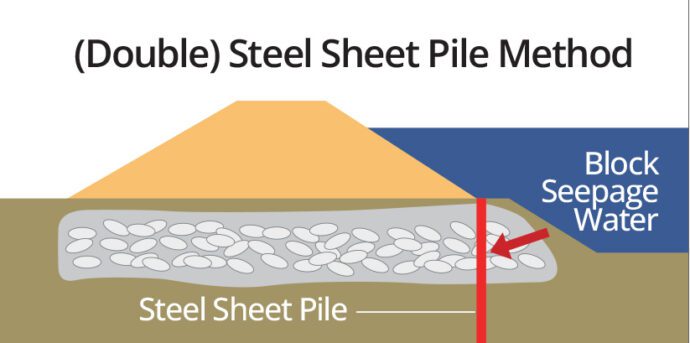

Prevention of Embankment Collapse Due to Seepage
– Steel Sheet Piles installed at the embankment toe block seepage
through sandy or gravel foundations, preventing collapse
during prolonged high water levels.

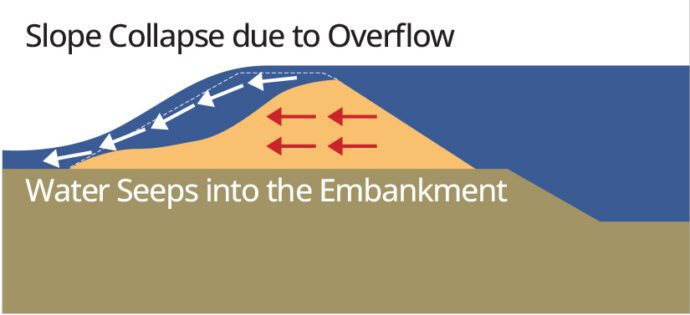

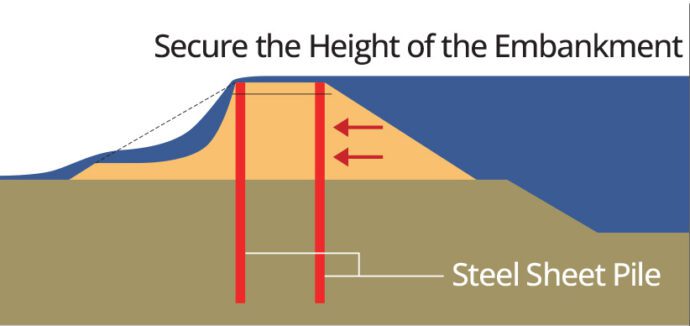

Overflow Countermeasure Using Double Sheet Piles
– Double Steel Sheet Piles interrupt the collapse cycle caused by overflow and help maintain embankment height. It also serves to reduce internal water leakage within the embankment body.
